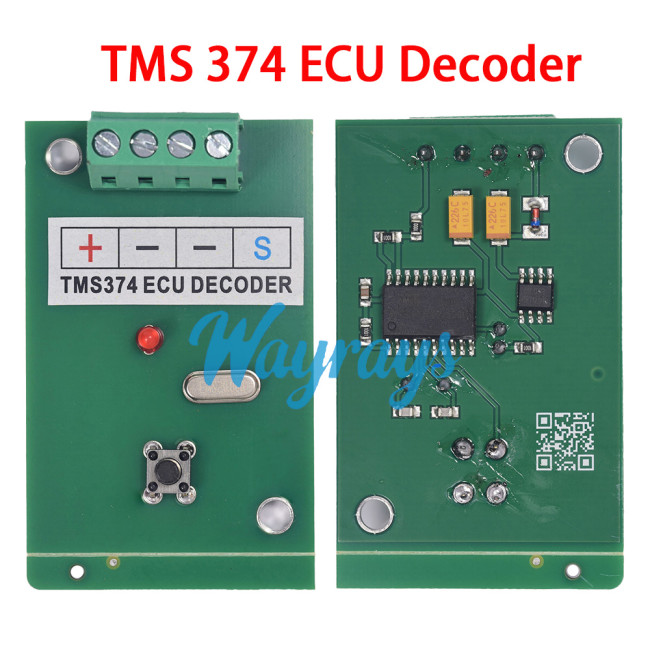

TMS374 ECU Decoder — Auto ECU Programmer, ECU Programming and Diagnostic Tool

TMS374 ECU Decoder — Auto ECU Programmer, ECU Programming and Diagnostic ToolItem NO.: WXG-006

US$ 18.00
Quantity
Adding to cart succeed
TMS374 ECU Decoder — Auto ECU Programmer, ECU Programming and Diagnostic Tool
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • This Tool is a frequency sweeper with 5V square wave output (Duty cycle 50%, effective frequency range from over 10kHz (max 50kHz) to 50Hz).

    This tool can be also considered as a MCU version of the software TMS-374 Decoder ECU. The only difference between the two tools is that the MCU version works without a PC. A small MCU is used to generate the pulses instead of the PC RS232 Tx line.

    TMS374 ECU DECODER: A handy tool to have that will decode an all the above ecu's to a new state without the need of a laptop!

    Colour: As Shown
    Material: PC
    Due to different batches, there may be differences in product appearance and printed text, which will not affect use

    Package Contents:
    1 * TMS 374 ECU DECODER

    Only the above package content, other products are not included.
    Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

    # Top 4 Reasons To Get TMS374 ECU Decoder

    1. Power the sweeper and ECU
    2. Connect the GND line to any suitable GND on the ECU
    3. Connect the Data line to the Reset pin on the 27C512 or 28F512
    4. Without the need of a laptop

    # TMS-374 Decoder ECU info

    A small tiny2313 MCU is used to generate the pulses instead of the PC RS232 Tx line. The TMS 374 software is in fact a simple frequency sweeper with an effective range from about 2000Hz to about 100Hz. The Tiny sweeper does exactly the same but much more better (bigger range).

    After powering the device on - the LED should blink twice. Pressing the button will start the sweep procedure. LED ON - means there are pulses on the output. After reaching the lowest frequency the LED goes off and the mcu stops the generation.

    The sweeper should work with the following ECUs:

    - Renault SIEMENS Fenix 3 and 5
    - Renault Megane 1400cc 8v
    - Renault Megane 1600cc 8v
    - Renault Megane 2000cc 8v
    - Renault Megane 2000cc 16V
    - Renault Megane Scenic 1400cc 8v
    - Renault Megane Scenic 1600cc 8v
    - Renault Megane Scenic 2000cc 8v
    - Renault Sefrane 2000cc 16V
    - Renault Laguna 2000cc 8v
    - Renault Laguna 2000cc 16v
    - Renault Espace 2000cc 8v

    # Renault SAGEM SAFIR 1 and 2

    - Renault Clio 1200cc 8V
    - Renault Clio 1400cc 8V
    - Renault Clio 1600cc 8V
    - Renault Clio 2000cc 16V Williams
    - Renault Laguna 1800cc 8V
    - Renault Laguna 2000cc 8V
    - Renault Laguna 1800cc 16V
    - Renault Laguna 2000cc 16V
    - Renault Twingo 1200cc 8V

    # Sagem SL96 Psa

    - Peugeot 306 1400cc 8V
    - Peugeot 306 1600cc 16V
    - Peugeot 306 1800 16V
    - Peugeot Ranch 1400 8V
    - Citroen Berlingo 1400cc 8V
    - Citroen Xara 1400cc 8V
    - Citroen Xara 1800cc 16V

    # DAEWOO SIEMENS

    - Daewoo Matiz 800cc
