Home>VVDI/Xhorse Products>VVDI Cutting Machine>XP0501EN Xhorse Dolphin XP-005 XP005 Key Cutting Machine With M5 Clamp Multi-Language Cut Sided/Track/Dimple/Tibbe Keys
XP0501EN Xhorse Dolphin XP-005 XP005 Key Cutting Machine With M5 Clamp Multi-Language Cut Sided/Track/Dimple/Tibbe KeysItem NO.: VVDI-QGJ003
US$ 1560.00
- Quantity
-
Adding to cart succeed
XP0501EN Xhorse Dolphin XP-005 XP005 Key Cutting Machine With M5 Clamp Multi-Language Cut Sided/Track/Dimple/Tibbe Keys
color:red,size:xxl
Subtotal: US$ 0
View My Cart
-
- Product Name: XP0501EN Xhorse Dolphin XP-005 XP005 Key Cutting Machine With M5 Clamp Multi-Language Cut Sided/Track/Dimple/Tibbe Keys
- Item NO.: VVDI-QGJ003
- Weight: 18 kg = 39.6832 lb = 634.9313 oz
- Category: VVDI/Xhorse Products > VVDI Cutting Machine
- Creation Time: 2025-05-19

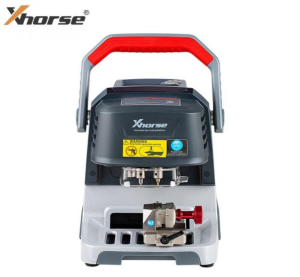

Xhorse XP-005 is the third generation key CNC machine, it is often used for duplicating automobile mechanical keys, changing key bitting, and solutions when all keys are lost. As a portable CNC machine, it is preferred by locksmiths to take out for work by car. Moreover, Xhorse XP-005 supports online upgrade and can update the new key data in time. Xhorse XP-005 new version is with M5 clamp.
Xhorse Dolphin XP-005 New Version Features:
M5 ClampM5 clamp can perfectly replace the M1 and M2 clamps. Some keys are easier to hold with the M5 clamp than with the M1 or M2 clamp. For cars like the new Honda Civic, if you use the M1 and M2 clamps, you may not be able to cut at the root, but the M5 clamp can. Because the place where the M1 clamp fixes the embryo is blocked a little (The key embryo is too short, but the teeth are too long, and the embryo cannot be fully extended).
M5 clamp supports 4 track external, 2 track external, 4 track internal, Channel track. M5 clamp has two sides of A and B. Users can turn the clamp surface to cut according to cutting needs. There is no need to repeated install and uninstall to replace different clamps.It can also be used with special fixtures to cut special Ford Citroen keys. It supports the connection of photo-taking, tooth-reading and optical imaging equipment. Non-conductor keys (plastic keys) can be cut.
Portable and ConvenientAttractive appearance, full of technology, portable design, compact structure, small body leading the industry
Precision ProductionAll aluminum body structure, Manufactured by Germany-made DMG CNC machine
Intelligent Control with Smart APPProvide powerful free App, support multi-language, support mobile phone, tablet computer and other intelligent terminal control, easy for operations.
Bluetooth ConnectionXP-005 can be connected to a mobile phone or tablet computer through Bluetooth for operation, and can also be used with key tool max and tablet computer.
Data RichnessThe built-in genuine key database is convenient for the tooth shape query when all keys are lost. Provide rich vehicle data, blank key data, the best tool of all key lost.
High Efficiency CuttingUse American famous brushless motor and screw rod, high efficiency and stability, create high precision cutting quality.
LED light and Non-Slip lifting handle
The status indicator LED light is ideal for checking key cutting status clearly, and also ensuring the regular works in the dark.
Ergonomic design, comfortable and effortless.
Used to secure the machine in a fixed position and moving it with better control and pulling power.
The excellent key duplicator maintains stable performance even in extreme weather.
Free Upgrade
Provide free software upgrade service, software function and database.
Technical serviceOne year warranty, free technical support, online service to provide remote control support
Built-in BatteryThe built-in lithium battery of the XP-005 machine can support rescue work for a long time without external power supply. The portable handle design and light body weight make it more convenient to carry.
Timely and Portable solutions
Compact design, its net weight, only 13kg, much easier to provide users outdoor and roadside services.
Optional Cutter:
2.0mm Milling Cutter
These three are included in the default package already, you can buy for backup too.
1.0mm Tracer Probe
1.5mm Milling Cutter
2.5mm Milling Cutter
Product Specifications:
Series DOLPHIN Key Cutting Machine Series Model XP-005 Working temperature -10~50℃ Working Humidity 10%~90% Input voltage 12-24V Battery capacity 64.75w.h Cutting power 100W Standby power 15W Motor Rotation Speed 10000-13000RPM Rated torque 0.15N.m USB Port USB2.0 Machine Dimension 315*218*270mm
Package Includes:
1pc x Condor Dolphin Machine Body1pc x M5 Clamp1pc x 1.5mm Cutter1pc x 2.5mm Cutter2pc x 1.0mm Probe1pc x Power Supply Adapter1pc x USB cable1pc x Brush1pc x screwdriver1pc x 1.5m power cord of US standard(optional)1pc x proof embryo1pc x 2mm hexagon bar wrench
1pc x 3mm hexagon bar wrench1pc x user manual
