Autel PowerScan PS100 Electrical System Diagnostic Tool , Highly Reliable Circuit Tester Power Injection Test LeadsItem NO.: Autel-BCQ023

US$ 75.00

Quantity: Stock ( 9999999 )

Adding to cart succeed

Autel PowerScan PS100 Electrical System Diagnostic Tool , Highly Reliable Circuit Tester Power Injection Test Leads

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

Product Name: Autel PowerScan PS100 Electrical System Diagnostic Tool , Highly Reliable Circuit Tester Power Injection Test Leads
Item NO.: Autel-BCQ023
Weight: 1.3 kg = 2.8660 lb = 45.8562 oz
Category: Autel/Lonsdor/Yanhua/Others > Autel products > Autel Prog&Accessories
Creation Time: 2025-07-30

Description:

The PowerScan Tool is the most revolutionary circuit tester to date. Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is truly the ultimate in power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.

Powerscan PS100 Electrical Circuit Tester User Manual

autel-ps100-tester

Features:

Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
Simultaneously uses the hot lead and the ground lead to activate components right in your hand
Instantly identifies positive, negative and open circuits
Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
Instantly checks continuity of switches, relays and diodes
Circuit breaker protected
Built-in Flashlight enables you to work in the dark
Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
20ft (extendable) cable provides excellent accessibility to test along the vehicle
Extremely easy to use and highly reliable

powerscan-ps100-1

Benefits of the PowerScan PS100

Recessed lighting for use in dark areas
Circuit breaker
Specific function display
Very reliable and easy to use

Specifications:

Display:	TFT color display (160 x 128 dpi)
Operating Temperature:	0 to 60°C (32 to 140°F)
External Power:	12.0 or 24.0 V power provided via vehicle battery
Length\Width\Height:	126mm(4.96")\46.5mm(1.83")\35mm(1.38")
NW:	0.105kg (0.23lb),GW: 0.726 kg(1.6lb)

Autel PowerScan PS10 Work Mode:

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each
one.

DC Voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.
autel-ps100-mode-1
AC Voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. voltage, frequency and duty cycle.
autel-ps100-mode-2
Resistance
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.
autel-ps100-mode-3
Tone On/Off
While the tool in this mode, just do a quick press of the mode button to toggle the tone on or off. While quickly pressing (a quick press and release) the mode button, if a short high beep is heard, this means the audio tone is turned on. If a short low beep is heard, the audio tone is turned off.
autel-ps100-mode-4
This function is invaluable when working in bright areas where LED illumination alone is not sufficient. The audio feature may be disengaged when desired, such as for applications where the tool will be connected to circuits for long periods of time and the audio could become annoying.

A number of measurement examples:

Measuring resistance
powerscan-ps100-2
By using the extra mass cable, the resistance across plugs and switches can be measured.

Consumer testing
powerscan-ps100-3
With the +/- button on the tester, the consumer can be checked by tensioning it directly.

Circuit test (plus switched)
powerscan-ps100-4
By directly tensioning the trailer plug, the complete circuit can be tested.

Circuit test (mass switched)
powerscan-ps100-5
Components connected to mass, such as a claxon, can easily be controlled by massaging the claxon via the tester.

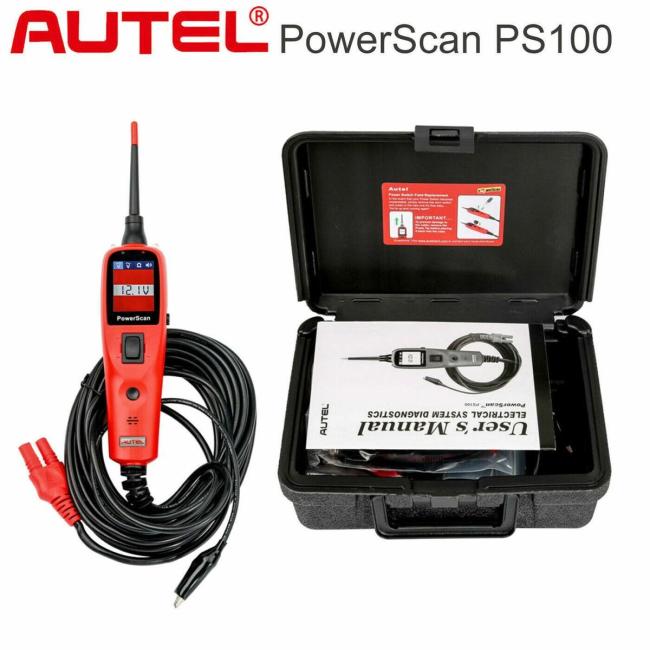

Package list:

1 × PowerScan PS100
1 × Rugged blow molded case
1 × 20ft. extension cable1 × Probe tip
1 × Battery hookup clips
1 × Cigarette lighter adapter
1 × User's Manual
