Yanhua Mini ACDP-2 Programming Master Basic Module. Supports USB and Wireless Connection No Need Soldering Work on PC/Android/IOSItem NO.: Yanhua-001

US$ 350.00

Quantity: Stock ( 9999998 )

Adding to cart succeed

Yanhua Mini ACDP-2 Programming Master Basic Module. Supports USB and Wireless Connection No Need Soldering Work on PC/Android/IOS

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

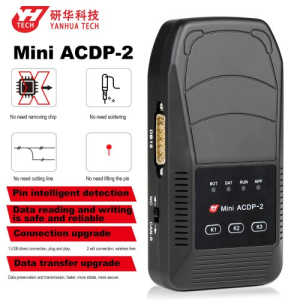

Yanhua Mini ACDP-2 Programming Master Basic Module
Supports USB and Wireless Connection
Work on PC/Android/IOS

Detail

- Product Name: Yanhua Mini ACDP-2 Programming Master Basic Module. Supports USB and Wireless Connection No Need Soldering Work on PC/Android/IOS
- Item NO.: Yanhua-001
- Weight: 1.7 kg = 3.7479 lb = 59.9657 oz
- Volume: 2080 CBM
- Category: Autel/Lonsdor/Yanhua/Others > YanHua programmer
- Creation Time: 2025-10-30
Yanhua Mini ACDP-2 Programming Master Basic Module

ACDP2 Programmer
Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP). This module is a necessary basic configuration

ACDP 1 vs ACDP-2:

ACDP: Wireless connection only
ACDP-2: Wireless and USB connection, connect ACDP host via Android, iOS and PC devices via USB without Bluetooth adapter.

Mini ACDP-2 Features:

No need to remove chip

No need to soldering

No need to cut the line

No need to lift the pin

Pin intelligent detection

Data reading and writing is safe and reliable

Connection upgrade

USB direct connection, plug and play

wifi connection, more freedom.

Data transfer upgrade

Data preservation and transmission, faster, more stable, more secure

How to Bind the Yanhua Mini ACDP-2:

1: Bind directly through the USB cable. The 3 USB cables correspond to Android, IOS, and PC respectively. After binding the device in this way, the USB cable must be connected to the host and the mobile phone, and it cannot be used without the USB cable. Disconnect the USB cable and the device will lose connection.
2: Configure wifi or hotspot binding through the USB cable. The binding process of this method requires a USB connection, and then enter the wifi or hotspot name and password to complete the binding. After binding, you can unplug the USB cable and use it wirelessly.
3: Configure wifi or hotspot binding through the Bluetooth of the mobile phone. This method is the same as the binding method of the 1st generation host. Wireless use after binding.

Yanhua ACDP2 Operating system requirements:

iOS (iPhone/iPad/Mac):

System Version: 9.0 or above
Device: iPhone 6 or newer
RAM: 2GB or more
Storage: 1.5GB or more
Download the app from the iOS App Store by searching for 'ACDP'

Android (Huawei, Xiaomi, Oppo, Samsung, etc. with Qualcomm chipset):

System Version: 5.0 or above
RAM: 2GB or more
Storage: 1.5GB or more
Download and install the Android app
Download

Windows PC (Windows 7 and 10):

System Version: Windows 7 or 10 (WinXP not supported)
RAM: 2GB or more
Storage: 1.5GB or more
Download

ACDP-Win 10 Bluetooth Driver
Download
