Home>Autel/Lonsdor/Yanhua/Others>YanHua programmer>Original Yanhua MB CAN Filter 18 in 1 for Benz/BMW Universal CAN Filter
US$ 28.00
-
Customized Requirements
- Quantity
-
Stock ( 9999999 )
Adding to cart succeed

Original Yanhua MB CAN Filter 18 in 1 for Benz/BMW Universal CAN Filter
color:red,size:xxl
Subtotal: US$ 0
View My Cart
-
- Product Name: Original Yanhua MB CAN Filter 18 in 1 for Benz/BMW Universal CAN Filter
- Item NO.: Yanhua-015
- Weight: 0.05 kg = 0.1102 lb = 1.7637 oz
- Volume: 150 CBM
- Category: Autel/Lonsdor/Yanhua/Others > YanHua programmer
- Creation Time: 2025-10-30

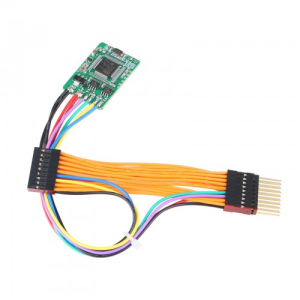

Yanhua MB CAN Filter 18 in 1 Benz/BMW Universal filter
Latest Benz / BMW Universal CAN FilterApplicable vehicle list:
1. Benz 18 types chasis model:S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)
BMW: CAS4/FEM Fxx

2. BMW Model:
BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment( no need to remove FEM, connect directly to instrument panel);
BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.
NOTICE!!
New style: 222/205/217
Old style: 166/212/463
CHECK the car model correctly before adjust.
Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1
YH Benz / BMW Universal filter --- Diagram for BMW
Below is wiring illustration:
Black --------- GND Red --------- +12V White --------- +5VPurple -------- L1(CAN_L1) Green --------- H1(CAN_H1)Yellow --------- L2(CAN_L2) Blue --------- H2(CAN_H1)
NOTICE! Please connect the 2 BMW dot together(short circuit) BEFORE connect to car!
1.Below is the diagram for BMW 1 series F20 instrument:

2.Below is the BMW 3 series F30 instrument:

3.Below is the BMW 3 GT series F30 instrument:

4.Below is the diagram for American Standard BMW X5 F15 instrument:
5.Below is the diagram for USA Strandard BMW X5 F15 instrument:

6.Below is the diagram for BMW FEM:
7.Below is the diagram for BMW CAS4(1L15Y/5M48H/1N35H)

8.Below is the diagram for BMW X3 F25 instrument:
