    Orange5 full function V1.45 Programming,Used for programming, diagnosing, and repairing automotive ECUs (Engine Control Units).

    Orange5 full function V1.45 Programming,Used for programming, diagnosing, and repairing automotive ECUs (Engine Control Units).Item NO.: BCQ-017

    US$ 268.00
    Quantity
    Adding to cart succeed
    Orange5 full function V1.45 Programming,Used for programming, diagnosing, and repairing automotive ECUs (Engine Control Units).
    color:red,size:xxl
    Subtotal: US$ 0
    View My Cart

    Copy and share this link on social network or send it to your friends

    Copy
      • Product Name: Orange5 full function V1.45 Programming,Used for programming, diagnosing, and repairing automotive ECUs (Engine Control Units).
      • Item NO.: BCQ-017
      • Weight: 1 kg = 2.2046 lb = 35.2740 oz
      • Volume: 1350 CBM
      • Category: Autel/Lonsdor/CGDI/Others > Other programmer
      • Creation Time: 2026-01-03

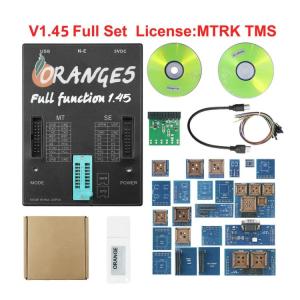

      Orange5 Professional Programming Device

      Software Version: V1.45, Software Does not Support Update.
      (Note:the device can not be updated,or that the device will be damaged)

      Language: English and Russian
      Systems: XP WIN7 WIN8

      Software Licenses:

      MTRK (Included in Orange-5 base)
      TMS (Included in Orange-5 base)
      M08V NEW
      Immo HPX 9V0
      NEC V850ES/SJ3 V850ES/SG3 UART
      NEC V850E2 NEW


      Orange5 Technical Info:

      * USB power supply (USB2.0/3.0)
      * Universal easy to plug panel ZIF16 for EEPROM
      * Control of contacts in the sockets
      * Two expansions compatible with Orange4 and Omega MTRK
      * Protection against overcurrent
      * Overload voltage protection
      * Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
      * Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
      * High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
      * Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
      * Capability of functional emulation of class CDC USB devices
      * Built-in 32-bit virtual machine
      * Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
      * Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
      - Installation and Work with Orange-5 under Windwos 7 and Windows 8.1

      CnCterm - Terminal program for work with COM ports.


      Feature:

      Supports any COM ports, incuding virtual ones from 1 to 20
      Works with text (ASCII) and HEX mode
      Creating a list of commands that allows editing and fast sending
      Fine-tuning the exchange rate
      Saving files including command and port settings.
      Saving incoming data in binary files
      File transfer via serial port.
      Delay settings for bytes and blocks
      "Echo" mode
      Delay settings between incoming data
      Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
      Program doesn't need to be installed
      Supports Orange5 programmer in emulation mode.
