    Home>Autel/Lonsdor/Yanhua/Others>Other Programmer>FoxFlash Chip Tuning Tool ECU Programmer , with Free Damos Supports VR Reading Auto Checksum and Super Strong ECU TCU Clone Free Update
    FoxFlash Chip Tuning Tool ECU Programmer , with Free Damos Supports VR Reading Auto Checksum and Super Strong ECU TCU Clone Free Update

    FoxFlash Chip Tuning Tool ECU Programmer , with Free Damos Supports VR Reading Auto Checksum and Super Strong ECU TCU Clone Free UpdateItem NO.: BCQ-013

    US$ 650.00
    Quantity
    Adding to cart succeed
    FoxFlash Chip Tuning Tool ECU Programmer , with Free Damos Supports VR Reading Auto Checksum and Super Strong ECU TCU Clone Free Update
    color:red,size:xxl
    Subtotal: US$ 0
    View My Cart

    Copy and share this link on social network or send it to your friends

    Copy
      • Product Name: FoxFlash Chip Tuning Tool ECU Programmer , with Free Damos Supports VR Reading Auto Checksum and Super Strong ECU TCU Clone Free Update
      • Item NO.: BCQ-013
      • Weight: 6 kg = 13.2277 lb = 211.6438 oz
      • Volume: 3400 CBM
      • Category: Autel/Lonsdor/Yanhua/Others > Other Programmer
      • Creation Time: 2026-06-09

      Product Description


      FoxFlash Chip Tuning Tool ECU Programmer with Free Damos Supports VR Reading Auto Checksum and Super Strong ECU TCU Clone Free Update

      Software download link :
      https://mega.nz/file/YD9inIpK#nFiy0FyVRcx7xR0NiTLj193SCbktF06nZ4BQjGeRiFo

      winols4.7 :
      https://mega.nz/file/1T1A0QZL#9q3EzXQ5ofU41UA5Unju7DxcaVwhzBkjzMfEddRj0oE
      We're proud to introduce you to foxFlash®, a new, unique and revolutionary tool for automotive professionals, tuners and engine calibration engineers.

      Since the foxFlash® is so much more than just an ECU programming tool, it simply can’t be compared to any traditional flash tool.  Despite other tools how good, this is being good tools for read/write operations, we supply many important features, both on the developer side as in daily use.  That is why we recommend foxFlash.

      Support language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Romanian, Czech, Turkish
      Compatible Operating Systems: Windows 7, 8/8.1, 10, 11 64 bits Pro, Recommended Configuration: CPU > 2.5 GHz (Intel i5, i7), RAM > 4GB (32 Bit is not supported)



      foxFlash Burst Points
      1.Master version
      2.Full protocols open
      3.VR read online work (some ecu need use our VR system, tool auto connect to ousr server donload file )
      4.ECU can be restored to original if your ecu was damage or meet some bad tuning, use our tool can restore to original.
      5.Free update.  No subscription, no annual fee.
      6.Foxflash Manager app can ONLY be installed on up to 6 PCs
      7.Auto checksum
      8.Professional Online support, Faster server 1000M/S, No VPN needed.  Supports WiFi hotspot
      9.Multi-language
      10.Two Years Warranty
      11.Excellent technical support.
      12.Help desk and tuner account
      13.ECU and TCU connect wires with pdf
      14.Special functions
      15.Auto support eeprom and flash  checksum
      16.Support MEDC17 free clone service (most of others tool need patch the files after read out ,but ours is free)
      17.Software can be download on official website: https://www.dfb-technology.com/
      18.With the Latest firmware and updates.  Use better quality BOM and PCB.  More stable, full proof, and reliable.
      19.FoxFlash ECU TCU Car List, or check driver list on dfb-technology, it is much easier to search than pdf
      20.Send email to info@dfb-technology.com to create an account to download damos files

      What is foxFlash ?
      foxFlash is a powerful solution developed for professional chiptuners, calibration engineers and control unit (ECU and TCU) repair shops. foxFlash includes multi-method control unit programming for tuning ability,this tool from tuner design ,so you can get many of them support.


      foxFlash is a powerful tool for ecu and tcu, supports a lot of mode:
      1.OBD mode:(read the data from Diagnostic port ,you need remove the ecu or tcu from car or open the ecu box , just read everything from car, supports obd vr read, and original file from our server, you can direct obd vr read it )
      2.BENCH mode: With service mode, you can use this mode clone or backup all ecu data, read the internal flash and external flash and eeprom data, so you can save a lot of money for clone ecu and tcu , you also can clone tcu and chiptuning with this mode.
      3.Jtag mode: open the ecu , and wire it or use ours adapter connect ecu ways,some of denso ecu always need use this mode for read and write .
      4.Boot mode: open the ecu and always can backup everything , read the flash and eeprom , you can save some ecu cause your obd write failed, or some others reason cause the ecu dead.
      5.Full system: you can read and write by pinout for most of ecu and tcu
      6.BDM mode: some of the ecu need read and write in bdm mode ,open the ecu and use ours adapter connect it

      Quick start basics:
      1. ensure good internet. Shutdown date and time automatically syncs. Shutdown antivirus system
      2. Device connected and powered (should show in windows device manager)
      3. open manager
      4. click ACTIVE 4. DO NOT CLOSE MANAGER
      5. Open foxflash app.
      Note you may need to disable windows automatic time sync feature.

      FoxFlash Supported Functions
      ECU clone
      TCU clone
      Chiptuning
      Stage1-stage4
      Vmax off
      Adblue and SCR off
      DPF OFF
      Flaps OFF
      popbangs
      gearbox data to adjust LC
      sport display
      immo off
      dpf off
      dtc off
      GPF/OPF Removal
      DPF Removal
      EGR Removal
      DTC Removal
      ADBlue Removal
      HOT Start Fix
      IMMO Removal
      Readiness Calibration
      Flaps / Swirl Removal
      TVA Removal
      Sport Displays Calibration
      Cold Start Noise Reduction
      Kickdown Deactivation
      StartStop Disable
      MAF Removal
      Speed Limiter Removal
      Torque Monitoring Disable
      Burbles Activation
      Popcorn Activation
      EVAP Removal
      Exhaust Flap Removal
      SAP Removal
      AGS Removal
      BMS/BPCM
      Lambda/O2 Removal
      Launch Control
      OBD Reading Protection
      Boost Sensor Calibration
      LC, AL and NLS for MED9.1
      Checksum Fix
      vmax, swirl off
      restoring ECU or TCU factory setting service
      VIN fix (EEPROM support checksum , so you can easy change VIN then write back


      We strongly recommend users to use online mode. The reasons are as follow:
      1.We can help you check if your file is correct online.
      2.The autochecksum can work online check too.
      3.It is safer.
      4.The online mode can check if your modifying is correct. If not, we can help to solve the problem.
      5.The online mode can auto VR read and write from our server, which mean you can get the original file, and we can help you recover or save your broken ecu.

      BTW, if you want to go out or work outside with our tool, just use your phone to turn on a hotpot, ours tool can work with hotpot. You will NOT need any VPN, for we have a wordwide server. No matter where you are, you can connect us.

      The online work is easier and safer. Please do NOT let your ecu become a brick without using the online mode.

      Compatibility
      Supported Control Units
      We believe a control units list can be considered as a more safe approach to correctly target the overall tuning procedure due to the fact that a lot of brands offer identical car models & versions that share different Control Unit types.

      Please note that foxFlash can help you select the right protocol with its auto-detection feature during identification on most control units.

      Support types:
      CAR
      TRUCK
      MOTORBIKE
      TRACTOR
      BOAT
      Additional TCU package available for Automatic Transmissions.

      Supported Winols damaos supply
      As we all know,winols damaos and A2L is very expensive, with a foxFlash, you will have this function for free, so you can get it for chitpuning , dtc off, and so on


      How to Update Foxflash Software?
      The update will auto sync from the server to your side.
      Run the foxFlash manager, click the download button till everything done.

      FoxFlash Software Update Log
      May 23rd, 2023

      Supported Control Units & Vehicles ECU:
      Bosch EDC17C83 TC1793

      Supported Vehicles:
      Isuzu Dmax 2017-2022 1.9D 164cv
      Isuzu Dmax Rodeo 2017-2022 1.9D 164cv
      Isuzu M21 2017-2022 1.9D 123cv
      BENCH  read is real.
      R/W time:   ~6 minutes at first programming, then ~ 30s.
      ATTENTION: Some of the latest vehicles might have a secure gateway.

      March 15th, 2023
      Continental GPEC2 GPEC3 GPEC4LM GPEC2A
      – foxFlash is now able to perform the Continental GPEC2 GPEC3 GPEC4LM GPEC2A

      foxFlash is now able to perform the following operations:
      Boot Read
      Boot Write

      On the following ECU reference:
      Continental GPEC2 GPEC3 GPEC4LM GPEC2A
      Chrysler 200 Continental GPEC3         BOOT
      Chrysler 200 Continental GPEC3         BOOT
      Chrysler 300 mk2 Continental GPEC2A BOOT
      Chrysler 300 mk2 Continental GPEC2A BOOT
      Chrysler Aspen Continental GPEC2A BOOT
      Chrysler Grand VojagerContinental GPEC2A         BOOT
      Chrysler Town & CountryContinental GPEC2A BOOT
      Dodge Avenger Continental GPEC2A BOOT
      Dodge Avenger Continental GPEC2A BOOT
      Dodge ChallengerContinental              GPEC2A        BOOT
      Dodge ChallengerContinental              GPEC2A        BOOT
      Dodge Charger Continental GPEC2A BOOT
      Dodge Charger Continental GPEC2A BOOT
      Dodge Dart Continental GPEC3         BOOT
      Dodge Durango Continental GPEC2A BOOT
      Fiat Tipo Continental GPEC4LM         BOOT
      Fiat Toro Continental GPEC3                 BOOT
      Fiat Toro Continental GPEC4LM         BOOT
      Fiat 500X Continental GPEC3         BOOT
      Fiat 500X Continental GPEC4LM BOOT
      JeepCherokee Continental GPEC3                 BOOT
      JeepCherokee Continental GPEC4                 BOOT
      JeepCompass Continental GPEC3         BOOT
      JeepCherokee Continental GPEC4LM                 BOOT
      JeepGladiator Continental GPEC2A         BOOT
      JeepGran Commander Continental GPEC4         BOOT
      JeepRenegadeContinental GPEC3                 BOOT
      JeepWrangler Continental GPEC4         BOOT

      March 03, 2023
      Adds following Ducati ECUs.
      Ducati install Bosch ME17.9.21 can easy Read&Write now
      foxFlash is now able to perform the following operations:
      Bench Read
      Bench Write
      Boot Read
      Boot Write
      On the following ECU:

      Bosch ME17.9.21
      Vehicles concerned:
      Ducati 1.198 150hp
      Support BENCH and BOOT option

      Feb. 2023
      Protocols for Porsche PDK

      February 25, 2023
      You can easy read & write Porsche PDK gearbox now!
      SUPPORTED CONTROL UNITS & VEHICLES
      BOOT
      Porsche 911.2 Siemens PDK4000
      Porsche 918 Siemens PDK3000
      Porsche 918 Siemens PDK4000
      Porsche Boxster 718 Siemens PDK3000
      Porsche Boxster 981 Siemens PDK4000
      Porsche Carrera 991 Siemens PDK3000
      Porsche Carrera 991 Siemens PDK4000
      Porsche Cayman Siemens PDK4000
      Porsche Macan Siemens PDK3000
      Porsche Macan Siemens PDK4000
      Porsche Panamera Siemens PDK3000
      Porsche Panamera Siemens PDK4000
      Reading & Writing Time
      Read: 12 minutes and 36 seconds
      Write: 6 minutes and 18 seconds

      January 27, 2023
      ECU UPDATE New Protocols for Bentley Skoda (BOSCH )
      Today we added multiple protocols for Bentley, Skoda, Honda, Volvo, etc. More info on supported ECUs and cars can be found below.
      SUPPORTED CONTROL UNITS & VEHICLES
      BENCH /BOOT/OBD
      BOSCH
      BAIC Bosch ME17.8.8 TC1728: Senova x25 1.5 VTI (2016), Senova X35 1.5 VTI (2016) , BJ20 1.5 VTI (2016)(BOOT)
      Honda Bosch ME17.9.55 TC1724: City/Jazz/BRIO/FIT 1.2L i-VTEC (2014)(BOOT)
      Mahindra Bosch EDC17C53 TC1767: XUV500 2.2 CRD (2014)(BENCH BOOT)
      Bentley Bosch MG1CS163 TC298: Continental GT W12 6.0 (2018)(BENCH)
      Volvo Bosch EDC16C34 MPC562: V70/S80 1.6D (2010)(OBD BENCH JTAG)
      Skoda Bosch MED17.1.27: Fabia 1.0 TSI (2017)(OBD BENCH BOOT)
      Bentley Bosch MED17.1.62: Bentayga W12 6.0 (2016)(BENCH BOOT)

      January 28, 2023
      1. BMW MSV90 Protocols BOOT Mode
      This time it is for BMW cars with Siemens MSV90 TC1796 ECU. More info on supported cars can be found below.
      SUPPORTED CONTROL UNITS & VEHICLES
      BOOT
      SIEMENS
      MSV90 TC1796
      CARS:
      BMW 5 Series F10 – 530i N53B30A/N52B30B
      BMW 5 Series F11 – 530i N53B30A/N52B30B
      BMW 7 Series F01 – 730Li N52B30A/N52B30B
      BMW 7 Series F02 – 730Li N52B30A/N52B30B
      BMW X3 Series F25 – 28i xDrive N52B30A/N52B30B

      2. Delphi DCM6.2AP DCM6.2A DCM6.2C DCM6.2V update
      Support for all Delphi DCM6.2AP/A/C/V
      foxFlash is now able to perform the following operations: on DCM6.2A/C/V
      OBD Read
      OBD Write
      JTAG_BOOT
      DCM6.2AP with JTAG_BOOT On the following manufacturer ECU’s:
      Hyundai
      Audi
      Citroen
      Fiat
      Kia
      MAN
      Peugeot
      VW
      Toyota
      Ssangyong

      BENCH MODE for complete reading and writing (full backup) TRW EMS2.2 and TRW EMS2.3

      FULL READ AND WRITE VIA PINOUT IN BENCH MODE:
      BOSCH EDC7
      BOSCH EDC16
      BOSCH ME9 / MED9

      FULL READ AND WRITE VIA PINOUT IN BENCH MODE:
      BOSCH MD1
      BOSCH MG1
      FREESCALE SPC5777
      AURIX TC29x
      ST SPC58

      FULL READ AND WRITE VIA PINOUT IN BENCH MODE:
      BOSCH EDC17
      BOSCH MED17 / ME17
      SIEMENS PCR2.1
      (Unlocking also possible via pinout)

      FULL SYSTEM VIA PINOUT (MICRO/FLASH + EEPROM) OF ECUs:
      BOSCH
      CONTINENTAL
      DELCO
      DENSO
      MARELLI
      SIEMENS
      TEMIC

      BDM E JTAG MODES FOR:
      BDM MPC 55x
      BDM MPC 56x
      BDM MC32 / ZC32
      BDM HC12 / S12x
      JTAG NEXUS MPC/SPC 56xx
      JTAG NEXUS MPC 55xx
      JTAG RENESAS
      SH7055
      SH7058
      SH7059
      SH7251
      SH72543
      SH72544
      JTAG NEC 76F00xx
      76F0038AGD
      76F0038GD
      76F0039AGD
      76F0039GD
      76F0040GD
      76F0070
      76F0085

      ADDITIONAL PACKAGE FOR AUTOMATIC TRANSMISSION:
      FULL READ AND WRITE TCU (MICRO+EEPROM)
      TCU CLONING
      TCU CODING FUNCTIONS

      FoxFlash vs KT200
      1. Foxflash use faster server.  No VPN needed.  Supports WiFi hotspot.
      2. FoxFlash gets 2-year warranty and KT200 only 1 year
      3. Software has the same function.  Foxfalsh develops own firmware, use own component selection, with better materials, improve on problems, more stable.

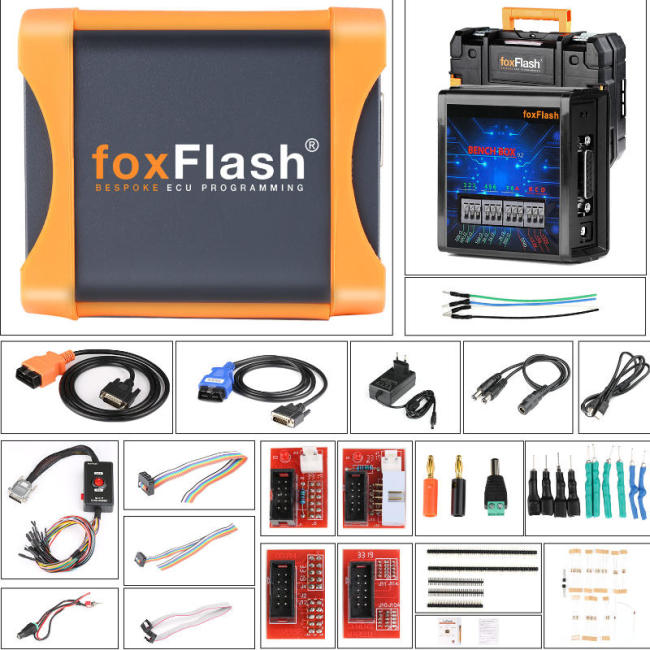

      FoxFlash ECU Programmer Package List:
      Hardware:
      1pc x Master machine
      1pc x Fox bench box
      1pc x USB cable
      1pc x Power adapter
      1pc x Fox box store over 10 adpaters
      1pc x Jtag and bdm cables
      1pc x Pen
      1pc x Notebook
      1pc x Suitcase
      1pc x Function cable for boot, bench, kline links .
      1pc x Truck OBD cable
      1pc x Car OBD cable
      1pc x Paper box
      1pc x Install guide
