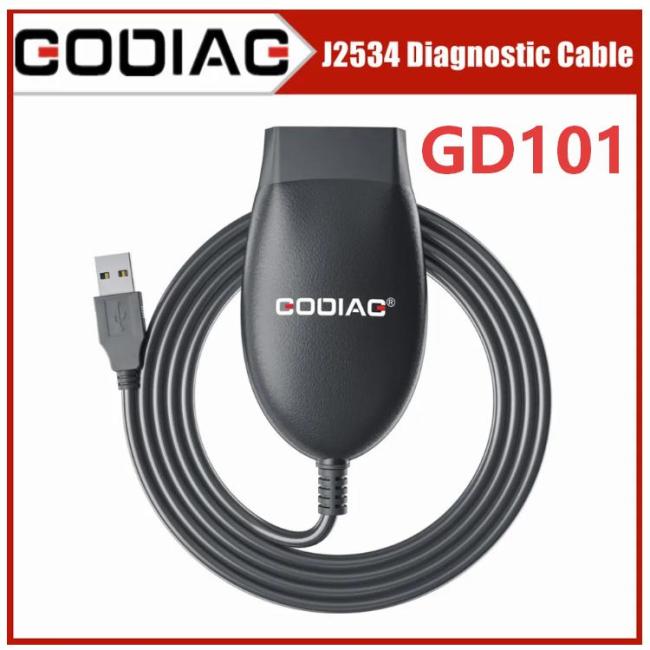

    GODIAG GD101 J2534 Passthru Diagnostic Cable, for Ford Mazda/ Honda/ Toyota/ Renault/ Forscan/ ScanMaster/ SDD/ PCM-Flash/ ELM327/ J1979

    GODIAG GD101 J2534 Passthru Diagnostic Cable, for Ford Mazda/ Honda/ Toyota/ Renault/ Forscan/ ScanMaster/ SDD/ PCM-Flash/ ELM327/ J1979Item NO.: GODIAG-008

    US$ 20.00
    Quantity
    Adding to cart succeed
    GODIAG GD101 J2534 Passthru Diagnostic Cable, for Ford Mazda/ Honda/ Toyota/ Renault/ Forscan/ ScanMaster/ SDD/ PCM-Flash/ ELM327/ J1979
    color:red,size:xxl
    Subtotal: US$ 0
    View My Cart

    Copy and share this link on social network or send it to your friends

    Copy
      • Product Name: GODIAG GD101 J2534 Passthru Diagnostic Cable, for Ford Mazda/ Honda/ Toyota/ Renault/ Forscan/ ScanMaster/ SDD/ PCM-Flash/ ELM327/ J1979
      • Item NO.: GODIAG-008
      • Weight: 0.2 kg = 0.4409 lb = 7.0548 oz
      • Volume: 80 CBM
      • Category: Autel/Lonsdor/CGDI/Others > GODIAG products
      • Creation Time: 2026-06-17

      GODIAG GD101 J2534

      GODIAG GD101 J2534 Highlights:

      1. Compatible with Honda 3.104.024, Toyota V17.30.011, JLR SDD V163, Forscan 2.3.48, scanmaster v2.1, pcm-flash 1.2.0, VAG ODIS 9.1.0 and Renault Clip V227,Renault Clip V230
      2. More speedup. Faster communication and reprogramming.
      3. More stability. Never let you down while reprogramming.
      4. Portable and convenient. Small package and easy to carry.
      5. Wok on Windows 8/10/11, 32/64bit

      GODIAG GD101 J2534 Function List:


      Software Brand Year NOTE
      Toyota TIS Techstream Toyota, Lexus 1995-2022 Free download and activate software, update by link
      Honda 3.102 Honda Acura 1995-2022 Does not support non-#7 K-line, update by link
      ODIS-S, ODIS -E VW Audi Skoda Seat 1995-2022 For J2534 VAG only. Don’t support CAN FD protocol, Don’t support Ignition switch voltage detection
      Forscan 2.3.48 Ford Mazda Lincoln 1996-2022 Cannot do 3, 11 medium speed CAN
      Scanmaster V2.0   1996-2022 Free download and activate software
      J1979Tester   1996-2022 Free Honda immo code calculation
      ELMConfig   1996-2022 Yes, test by your side
      JLR SDD2 Jaguar Land rover 2006-2016 Yes
      GDS2 GM Buick Cadilac Chevlert 1995-2022 Yes
      Renault Clip V227/V230 Renault 2005+ Renault with Can Bus Protocol Free download by link

      Notice :
      Can't support MS-CAN

      GODIAG GD101 J2534

      GODIAG GD101 J2534 Features:

      1. Support most all of J2534 compatible software
      2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
      3. Support ECU reprogramming in J2534 mode with programming voltage.
      4. Supply free software for diagnosing J1979 compatible vehicles.

      Notice:
      1. Software Free Download:

      Free Download Godiag J2534 V2.3 Software
      For Honda 3.104.024, Techsteam V17.30.011, JLR SDD V163, Forscan 2.3.48, Scanmaster v2.1, PCM-flash 1.2.0 and VAG ODIS 9.1.0, Renault Clip V227/V230, please contact online customer service on Whatsapp: +86 13995696053.
      2. Not Support Win7 System

      GODIAG GD101 J2534 Languages:

      ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,
      Russia, Greece, Chinese

      Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese

      Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese

      JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean

      Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian

      Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian

      Pcmflash: English, Russian

      Can Clip Renault: English, German, Danish, Spanish, Finnish, French, Italian, Norwegian, Dutch, Portuguese, Romania, Swedish

      GODIAG GD101 J2534 Protocol Configuration:

      1. ISO15765 (Standard/Extended frame).
      2. ISO9141.
      3. ISO14230.
      4. J1850 PWM (Support IFR and 2X speed mode).
      5. J1850 VPW (Support 4X speed mode).
      6. Programming voltage.
      7. Short to ground.
      8. ELM327 with command set version 1.3a

      GODIAG GD101 J2534 Hardware Configuration:

      1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
      2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
      3. J1850 PWM (OBDII PIN 2 and PIN 10).
      4. J1850 VPW (OBDII PIN 2).
      5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
      6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).
      7. Dimension(L*W*H): 95mm*55mm*23mm
      8. Environmental:-20℃-45℃(-4℉-113℉)
      9. Vehicle voltage requirements: 8-18V DC
      10. Vehicle connection: Molded DLC3(OBDII-16)
      11. Host connection: USB 2.0

      How to use the GODIAG GD101 J2534?

      GODIAG GD101 J2534

      GODIAG GD101 J2534 PCB Display:

      GODIAG GD101 J2534
      GODIAG J2534 Upgrade Notice

      Driver Updated on 2023-8-16

      GODIAG GD101 J2534 driver update to V2.3, Click to download V2.3

      Support test Renault Clip V227
      Renault year 2005+ Renault with Can Bus Protocol

      Software Firmware(March 31, 2023)

      1. Software upgrade to 2.1
      2. Firmware upgrade to 1.8
      Solve the following problems:
      1. In J2534 mode, the sending length of J1850VPW is extended to 4128
      2. PyOBD software cannot be connected in ELM327 mode
      3. ELM327 mode cannot read ISO9141 VIN
      Open the startup software, connect the device, and click upgrade firmware.

      Package Includes:

      1pc x GODIAG GD101 J2534
