Home>Autel/Lonsdor/Yanhua/Others>OBDSTAR programme>2026 OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP, Support Car/ HD/ E-Car/ Motorcycles/ Jet Ski Get Free Key Sim and Motor Adapters

2026 OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP, Support Car/ HD/ E-Car/ Motorcycles/ Jet Ski Get Free Key Sim and Motor AdaptersItem NO.: OBDSTAR-001A

US$ 1299.00

Quantity: Stock ( 9999998 )

Adding to cart succeed

2026 OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP, Support Car/ HD/ E-Car/ Motorcycles/ Jet Ski Get Free Key Sim and Motor Adapters

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

① Support Programming IMMO (Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys,
② Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.
Paid software activation service for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform are available.
③ Supports Car, HD, E-Car, MOTO, Marine (jet-ski) Immobilizer
④ Built-in Can FD, Doip, Get Free MP001, P004 Adapters, Renault Adapter, free Key Sim and Motorcycle Adapter Set.
⑤ 2 Years Free Update

Detail

Product Name: 2026 OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP, Support Car/ HD/ E-Car/ Motorcycles/ Jet Ski Get Free Key Sim and Motor Adapters
Item NO.: OBDSTAR-001A
Weight: 7.1 kg = 15.6528 lb = 250.4451 oz
Volume: 8450 CBM
Category: Autel/Lonsdor/Yanhua/Others > OBDSTAR programme
Creation Time: 2025-08-27

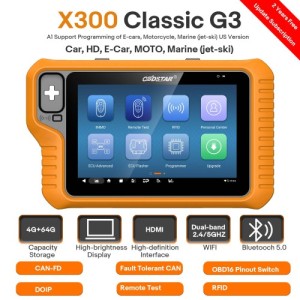

OBDSTAR X300 Classic G3 Key Programmer for Car/ HD/ E-Car/ Motorcycles/ Jet Ski with 2 Years Free Update

OBDSTAR X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, Jet Ski, etc. A good helper for an automotive locksmith master.

Highlights:

1. Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.
2. Supported vehicles: Car, HD, E-Car, MOTO, Jet Ski.
3. 2 Years Free Update Online, After 2 Years, please buy OBDSTAR G3 One Year Update Service.
4. Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID
5. With MP001 (replace P003/P003+ Adapter), P004 Adapter and Renault Adapter in Default Package
6. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
7. Paid Software Service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform (Bundle Price) and the other functions are available. Turn your G3 to a powerful all in one tool. With ECU Cloning license, G3 will work as same as DC706.
G3 Paid Software Service
8. Get Both Key SIM Emulator and Motorcycle Adapter Set (M034, M037, M040, M041, M042, M043, M053, M054) for Free.
9. Please Check
OBDSTAR X300 Classic G3 User Manual
OBDSTAR X300 Classic G3 Vehicle List

OBDSTAR X300 Classic G3 Key Programmer

Notice: Language: English Only

Other Optional Accessories You May Need:
OBDSTAR Ford All Key Lost Cable work together with OBDSTAR P002 Adapter for FORD /LINCOLN / MUSTANG etc
OBDSTAR Toyota-30 Cable Proximity Key Programming / All Key Lost Support 4A and 8A-BA types No Need to Pierce the Harness
BENZ FBS3 KIT is used for Read PinCode, ECU Reset Virgin/Program and Program Keys. Support FBS3 Add Keys, AKL, ECM/TCM/ISM/EIS/ELV Reset Virgin and set personalization.
OBDSTAR VW 7-in-1 TCM Kit supports ECU clone, Read/Write MAP, Diag, Cluster Calibration and other functions for VW, AUDI automatic transmission. It's all by OBD or bench mode and no need to take off the TCM of the car, easy to use.
OBDSTAR TCM Connectors use for transmission mileage calibration and ECU cloning functions, no jumper connection required, one click read/write, easy to use, time saving and safe.
OBDSTAR VW4-AKL Cable For VW IMMO IV NEC24C64 and NEC24C32 All Keys Lost
OBDSTAR RH850/V850 Adapter Full Kit for MQB All Keys Lost
OBDSTAR P005 Adapter Kit Used for BMW BDC02 IMMO Function

Advanced Functions

1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;
3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.

OBDSTAR X300 Classic G3 Key Programmer

OBDSTAR X300 Classic G3 Vs. X300 DP Plus:

		X300 DP Plus C	X300 Classic G3
Hardware	Operation system	Android 5.1.1	Android 11
	OTA	x	√
	Screen recording	x	√
	Wireless screen casting	x	√
	CPU	qual core ARM cortex A9 1.4GHz	Quad-core 64-bit Cortex-A55 2.0GHz
	Battery	3700mAh	9000mAh
	Storage capacity	1+32GB	4+64GB
	LCD	8.0 inch	8.0 inch fully laminated sunlight readable screen
	Camera	Rear camera 500W pixels	Rear camera 800W pixels, auto-focus
	Bluetooth	Bluetooth 4.2	Bluetooth 5.0(Compatible with BT 4.2)
	External interfaces	x	RJ-45√
		x	HDMI√
		TYPE-A	TYPE-A,TYPE-C
	WiFi	2.4G	Dual-band 2.4G/5GHZ
	VCI	STM32F105	STM32H723
		CANFD Adapter Required	CANFD built in√
		x	DOIP built in√
		x	Low Speed(Fault Tolerant) CAN built in√
		x	RS232、RS485 built in√
		All other common protocol types	All other common protocol types
	RFID	P001 Required	Built in√
	Remote Test	RT100 Required	Built in√
	Renault Converter	Renault Converter Required	Built in√
	Weight	About 1kg	1.5kg (main unit)
	Dimension	254mm174mm35mm	270.5mm165mm39mm
Functions	Diagnosis	√	x
	OBDⅡ	√	√
	Car IMMO	√	√
	MOTO IMMO	√	√
	HD IMMO	√	√
	Marine IMMO	x	√
	E-Car IMMO	x	√
	RFID	x	√
	Make key	x	√
	Unlock Smart key	x	√
	Renew key	√	√
	Read/Write EEPROM MCU	√	√
	ECU advanced（Includes ECU unlock）	x	√
	Oil/Service reset	√	√
	Other service function	√	x
	Remote test	x	√
	ECU flasher IMMO（IMMO OFF、ISN、IMMODATA）	x	√
	ECU flasher（Clone）	√ Limited supported models, different with DC706 and G3	Paid License
	Car/Motorcycle cluster recalibration	√	Paid License
	Airbag reset	√	Paid License
	Test Platform	x	Paid License

OBDSTAR X300 Classic G3 Lastest Update:

VW/AUDI/SEAT/SKODA [VERSION:V45.48]

1. Add key programmingfunction (supported AKL) for VW/AUDI/SEAT/SKODA MQB-5A keys,which supports online synchronization code calculation ( need to use with OBDSTAR RH850/V850 Adapter Full Kit)
2. Add IMMO data reading function (all keys lost) for VW/AUDI/SEAT/SKODA IMMO IV NEC24C64 and NEC24C32 dashboards by BENCH, without removing IC, soldering PCB and making server data. (Need to use with OBDSTAR VW4-AKL Cable)

MOTO IMMO SOFTWARE MAJOR UPGRADE

BMW [VERSION: V40.10]

LYNK&CO 【Version:V40.33】
Add Get CEM Module Security Data function for below models:
● 01 PROXIMITY
● 03 HYBRID PROXIMITY
● 01 HYBRID PROXIMITY
● 05 PROXIMITY
● 02 PROXIMITY
● 05 HYBRID PROXIMITY
● 02 HYBRID PROXIMITY
● 06 PROXIMITY
● 02 Hatchback PROXIMITY
● 06 HYBRID PROXIMITY
● 03 PROXIMITY

ROEWE 【Version:V42.20】
1.Add proximity key programming function for MG MG72023-.
2.Optimized software.

BYD 【Version:V40.63】
Add BYD F3 PROXIMITY Key Program Or Clear With PinCode.

GREATWALL 【Version:V42.29】
1.Add proximity key programming function for HAVAL H6 (3DN).
2.Add Read Pincode function for HAVAL H2 TYPE2.
3.Optimized software.

TRUMPCHI 【Version:V40.53】
1.Add proximity key programming function for below models:
● AION Y PLUS ● HYPER SSR
2.Optimized software.

CHERY 【Version:V40.96】
Add Read PinCode function for below models:
● JETOUR X70 PROXIMITY
● KAIYI C3 PROXIMITY
● JETOUR X70 PLUS PROXIMITY
● KAIYI C3R PROXIMITY
● JETOUR X70S PROXIMITY
● KAIYI E5 PROXIMITY
● JETOUR X90 PROXIMITY
● KAIYI V3 PROXIMITY
● JETOUR X90 PLUS PROXIMITY
● KAIYIX3 PROXIMITY
● JETOUR X95 PROXIMITY
● KAIYIX3 PRO PROXIMITY
● JETOUR DASHING PROXIMITY
● KAIYI X5 PROXIMITY
● EXEED RX PROXIMITY
● CHERY E3 PROXIMITY
● ARRIZO5 PROXIMITY
● TIGGO 3X PROXIMITY
● ARRIZO7 PROXIMITY
● TIGGO5 PROXIMITY
● ARRIZO GX/EX PROXIMITY

SMART【Version:V40.94】
Add Read/Write FLASH and Mileage Calibration functions for SMART BR453 MONOCHROME 2014-

RENAULT 【Version:V41.11】
Add Read/Write flash,Milage Calibration functions for below models:
● RENAULT TWINGOIII TYPE 3(2021-EV MONOCHROME)
●RENAULT TWINGO ⅢITYPE4(2014-MONOCHROME)

HYUNDAl/KIA【Version:V41.40】
Add ECU Information,Mileage Calibration,Erase Dtc and Read/Write eeprom functions for KIA K32024-R7F701421.

BCM【Version:V30.02】
1.Add immocoil data initialization function for below models:
● TIANJIN FAWVITA V5 PIC16F688
● TIANJIN FAW N5 MC9S12G48
● TIANJIN FAW N7 MC9S12G48
2.Optimized software.

OBDSTAR X300 Classic G3 FAQ:

Q1: Can the X300 Classic G3 be equipped with Airbag Reset, Cluster Recalibration, ECU Flasher and other functions?
A1: Yes, please contact us or our our dealers for details.

Q2: I would like to have the list of supported models & features of this tool, where can I get it?
A2: You can download the coverage of the tool from the "Function Manual" on the product page of our official website, and we usually synchronize the update at the end of each month.

Q3: Is X300 Classic G3 compatible with all the functions of KEY MASTER DP PLUS?
A3: No, X300 Classic G3 is mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of KEY MASTER DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.

Q4: Can I use the accessories of an old product I have previously purchased?
A4: Yes, in order to save locksmith costs, X300 Classic G3 is compatible with the following adapters or cables that have been purchased by previous users:
1. P002 adapter, P003 adapter, Key Sim adapter;
2. CAN DIRECT KIT, TOYOTA-24/27/30 CABLE;
3. NISSAN-40 BCM CABLE, NISSAN/ RENAULT 16+32 CABLE;
4. FCA 12+8 CABLE;
5. TOYOTA 8A cable, FORD all key lost cable.

Q5: What is ECU Unlock function of X300 Classic G3?
A5: The ECU Unlock fucntion is developed so that used ECU modules can be used in other identical vehicles. If you install a used ECU into another vehicle without unlocking it, it will report a fault and cannot be used normally.

Package Includes:

1pc x OBDSTAR G3 Multiplexer
1pc x M001 Main Cable
1pc x Charger
1pc x MP001 All-in-One Programmer
1pc x W004 Read/Write Soldering Wire
1pc x W005 Read/Write Soldering Wire
1pc x W006 Clock Frequency Wire
1pc x C4-01 Multi-function Data Read/Write Board
1pc x C4-02 Eight-pin Chip(IC) Soldering Board
1pc x BENCH-A V3 for ECM and TCM Cloning Functions
1pc x P004 Adapter
1pc x BENCH-B V2 ECU Cloning BENCH Harness

Free Gift Kits
A1:
1pc x Key Sim + USB to Type-C Cable

A2:
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA
