Home>Autel/Lonsdor/Yanhua/Others>OBDSTAR programme>2025 Full Version OBDSTAR DC706 ECU Tool for Car and Motorcycle with ECM+TCM+BODY ECU Clone by OBD or BENCH
2025 Full Version OBDSTAR DC706 ECU Tool for Car and Motorcycle with ECM+TCM+BODY ECU Clone by OBD or BENCHItem NO.: OBDSTAR-006
US$ 190.00
- Quantity
-
Adding to cart succeed
2025 Full Version OBDSTAR DC706 ECU Tool for Car and Motorcycle with ECM+TCM+BODY ECU Clone by OBD or BENCH
color:red,size:xxl
Subtotal: US$ 0
View My Cart
-
- Product Name: 2025 Full Version OBDSTAR DC706 ECU Tool for Car and Motorcycle with ECM+TCM+BODY ECU Clone by OBD or BENCH
- Item NO.: OBDSTAR-006
- Weight: 2.6 kg = 5.7320 lb = 91.7123 oz
- Volume: 1200 CBM
- Category: Autel/Lonsdor/Yanhua/Others > OBDSTAR programme
- Creation Time: 2025-10-31

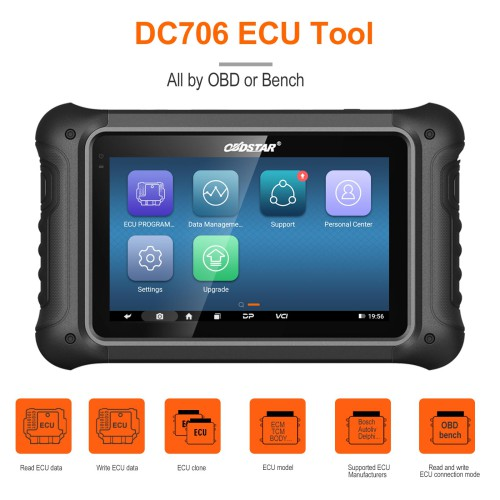

2025 Full Version OBDSTAR DC706 ECU Tool for Car and Motorcycle with ECM+TCM+BODY ECU Clone by OBD or BENCH
OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.
OBDSTAR DC706 Full Version Highlights:1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...2. Support 710+ ECM types(Partial functions require P003 adapter.)
3. Support 120+ other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
4. Support VW DQXXX (TCM) calibrate mileage
5. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
6. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
7. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
8. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
9. Support automatic identification
10. Strong help data files
11. All by OBD or Bench mode13. Please check OBDSTAR DC706 Full Version Support List
14. One Year Free Update Onine
15. DC706 ECU Tool Full Version supports Indian TATA and Mahindra (Check in V30.41 ECM software)
16. Support HP, Fiat IAW 9GF/9GV/7GF/10GF, Simos etc ECU (Partial functions require P003+ adapter.)
Notice:
1. Our Distributor Code: 0086A002
2. Not support DQ250 before Year 2008 with the old protocol
Other Optional Accessories You May Need:
OBDSTAR P003+ KIT supports reading and writing ECU eeprom & flash data and caculating IMMO data of BOSCH ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra etc.
OBDSTAR VW 7-in-1 TCM Kit supports ECU clone, Read/Write MAP, Diag, Cluster Calibration and other functions for VW, AUDI automatic transmission. It's all by OBD or bench mode and no need to take off the TCM of the car, easy to use.
OBDSTAR TCM Connectors use for transmission mileage calibration and ECU cloning functions, no jumper connection required, one click read/write, easy to use, time saving and safe.
OBDSTAR DC706 Functions:
1. ECU Clone/ All by OBD or Bench2. ECM clone for cars (Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)3. ECM clone for motorcycles (Bosch, Delphi, EFI...)4. TCM clone (Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)5. Body/Other clone (FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)
Supported ECU Manufacturers:ALPSAutolivBoschContinentalDelphiDensoJohnson ControlsLearMagneti MarelliSiemensTemicValeoSupported Brands:CarASTON MARTINBMWFAWFCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)FORD/LINCOLNGM/OPELHYUNDAI/KIALAND ROVER/JAGUARLUXGENMASERATIMAZDAMITSUBISHINISSANOPELPSASMARTSUBARUSUZUKIVOLVOVW/AUDI/SEAT/SKODAMotorcycle:APRILIABRPCFMOTODERBIGILERAGUZZIPEUGEOTPIAGGIOQJBENELLIVESPAOBDSTAR DC706 Configurations
Configuration Software DC706_ EN A ECM DC706_ EN_ B TCM DC706_ EN_ C BODY DC706_ EN D ECM+TCM DC706_ EN E ECM+B0DY DC706_ EN F TCM+B0DY DC706_ EN_ FULL ECM+TCM+BODY
OBDSTAR DC706 ECU Tool Latest Update Information:
MOTORCYCLE ECU FLASHER UPGRADE [V30.04]
ROYAL ENFIELD BOSCH ME17.9.71 TC1724N (BENCH+P003)
CFMOTO BOSCH ME17U6 TC1728 (BENCH+P003)
KTM BOSCH ME17.9.21.1 TC1724N (BENCH+P003)
DSG MILEAGE RESET UPGRADE
Add DSG mileage reset functions for belpw models:
DQ380(0DE) DQ500(0DE) DQ381(0DE)
OBDSTAR DC706 Function Display:1) Main Page/Brand Supported
2) ECM Clone for Cars
3) ECM Clone for Motorcycles
4) TCM Clone
5) Body/Other Clone
Customer Feedback:
Today i have under work VW Caddy year 2008. Mechatronic unit is with white back and OBDStar worked fine!
OBDSTAR DC706 Specifications:
Operation system Android 5.1.1 CPU RK3128 quad-core ARM cortex A7 Battery 3700mA, rechargeable polymer lithium battery Extension memory card 32G micro SD (TF) card supported Storage capacity 16GB LCD 7.0 inch LCD resolution 1024*600 Touch screen Capacitive touch screen Wifi Supported Working temperature -20℃~55℃ (14℉~131℉) Storage temperature -20℃~70℃ (-4℉~158℉) Weight About 1.3kg Dimension 243mm*148mm*36mm
Package Includes:
1pc x DC706 tablet PC
1pc x 12V2A charger
1pc x M001
1pc x P004 adapter
1pc x BENCH-B V2 Cable Set
1pc x Quick start guide/certificate
You May Also Like
Recently Viewed
-

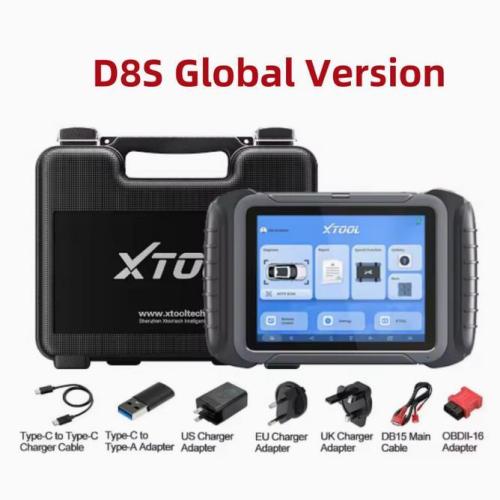

Xtool D8S Diagnostic ScannerUS$ 550.00 -
-
-
-
-
-
-
-
HUK for VW HU66 stainless steel toolUS$ 6.00 -
![[Normal model] For Opel key shell without logo place](https://cdn.staticyy.com/100611/2026/03/13/1/f/1f8be3e37d8177a3.jpg?x-oss-process=image/quality,Q_90/auto-orient,1/resize,m_lfit,w_500,h_500 "[Normal model] For Opel key shell without logo place")

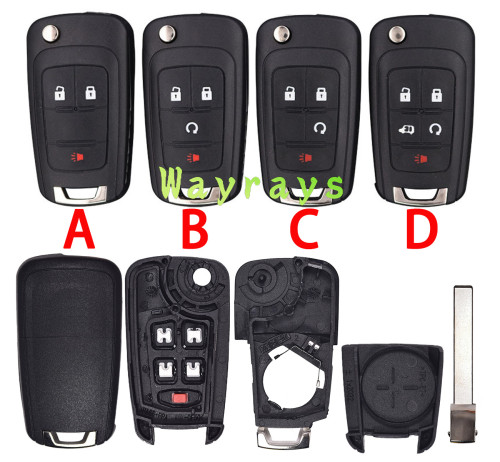

[Normal model] For Opel key shell without logo ...US$ 1.05 ~ US$ 1.40 -
-
