Home>Autel/Lonsdor/CGDI/Others>Other programmer>V1.1.7.0 FormulaFLash ECU TCU Chip Tuning Programmer Update Online , Supports Bench Boot Read and Write EEPROM / FLASH ECU TCU Chip Tuning Tool
V1.1.7.0 FormulaFLash ECU TCU Chip Tuning Programmer Update Online , Supports Bench Boot Read and Write EEPROM / FLASH ECU TCU Chip Tuning ToolItem NO.: BCQ-030
US$ 718.00
-
Customized Requirements
- Quantity
-
Adding to cart succeed
V1.1.7.0 FormulaFLash ECU TCU Chip Tuning Programmer Update Online , Supports Bench Boot Read and Write EEPROM / FLASH ECU TCU Chip Tuning Tool
color:red,size:xxl
Subtotal: US$ 0
View My Cart
- Weight: 1.0KG ( 2.2LB )
-
- Product Name: V1.1.7.0 FormulaFLash ECU TCU Chip Tuning Programmer Update Online , Supports Bench Boot Read and Write EEPROM / FLASH ECU TCU Chip Tuning Tool
- Item NO.: BCQ-030
- Weight: 3.1 kg = 6.8343 lb = 109.3493 oz
- Volume: 4200 CBM
- Category: Autel/Lonsdor/CGDI/Others > Other programmer
- Creation Time: 2026-08-19

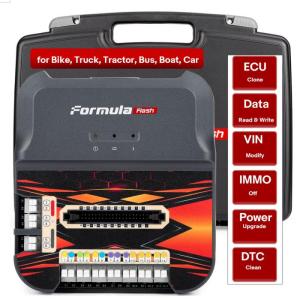

Formula FLash is an all-in-one ECU and TCU tuning solution.
Formulaflash Highlights:1. Fast search, Easy to use, Stable and powerful, Light and easy to carry, Connection diagram full coverage, Technical support2. Multi-functional use: ECU clone, fast data reading and writing, VIN modification, IMMO off, Power upgrade, DTC clean3. Multi-language support: English, Spanish, Russian, Korea, Chinese4. Connection Methods: BENCH, BOOT,OBD5. Supply multiple vehicle types: BIKE, TRUCK, TRACTOR, BUS, BOAT, CAR
6. No email or password registration required, one-click activation via computer network
7. Fast search, Easy to use, Stable and powerful
5. Free subscription for 12 months. $200 per year later. After 12 months, if you don't want to pay yearly new update, you can continue use the old software.
6. Support Multi language: English/Spanish/Russian/Korean
7. Support MD1CS018, MD1CS016, DQ381, DQ380,MG1CA094,MD1CS015,MD1CE108,MD1CC878,MD1CE100C etc.
8. Supports BMW MSV80, MSV90, MSD80, MSD85, MG1CS003, MG1CS021 read, write, modify by one click
9. One-Click Reading of ECU&TCUCS Codes for VAG: specially designed to simplify MQB all keys lost key programming, allows locksmiths to quickly and reliably read Cs codes directly from the ECU and TCU with
10. Supports checksum correction
11. Adds Toyota GEN2 adapter-free read/write and verification(no disassembly, no adapter required)
12. GM Power Upgrade: E88/E90/E93 support now available. OBD/Bench read + write +checksum
13. Supports GM Delco E37/ E39/ E39A/ E67/ E78/ E87/ E98/ E92/ E80/ E83 One-click Immo off + VIN modification
14. Modify VIN for BMW series, Delco series, VW & Audi MED17/EDC17 series, MT20/MT22 series, Hyundai & Kia ME17/MED17/MEG17 series
15. Supported Stage 1 power upgrades for: ME17/ME7 series: ME17.9.11, ME17.9.12, ME7.5.10, ME7.5.20, etc., MED17/MEG17 series: MED17.9.8, MEG17.9.8, MEDG17.9.8, etc. Simos8X series, Delco series, MSV90, and more.
16. Toyota denso 3rd generation BENCH + OBD mode read/write + Checks
17. Toyota GEN2 GEN2 GEN3 IMMO OFF module Now Available
Comprehensive Functionality
The FormulaFlash programmer offers a broad range of functionalities designed to meet the needs of professional tuners. These functionalities include:
ECU Cloning: Create exact copies of ECUs, allowing for easy replacement and upgrade of vehicle control units.
Fast Data Reading and Writing: Quickly read and write data to and from ECUs and TCUs, enhancing the efficiency of your tuning operations.
VIN Modification: Modify the Vehicle Identification Number (VIN) in ECUs, which is essential for tuning and customization.
IMMO Off: Disable the immobilizer function, allowing the vehicle to start without the original key.
Power Upgrades: Increase the power output of vehicles by modifying ECU parameters, leading to enhanced performance.
DTC Cleaning: Clear Diagnostic Trouble Codes (DTCs) from the ECU, which is crucial for maintaining optimal vehicle performance. This functionality addresses common concerns about the risks of ECU remapping.
Formulaflash Software Installation Guide:
1. Download FormulaFLash software
2. After downloading, you will get a Formula_1.0.1.2 folder
3. Open this folder, and find FormulaFLASH.exe
4. Connect FormulaFLash ECU Chip Tuning Tool and computer
5. Unzip FormulaFLASH.exe software package, it will open the software program automatically, and prompt you to activate, just click "Yes", and the device will be activated soon.
User-friendly Design: Fast, easy to use, stable, and powerful. The device is also light and easy to carry, with full coverage of connection diagrams and technical support. Its user-friendly design ensures that even those new to ECU and TCU tuning can use it effectively.
Install the software directly to view features without connecting a device.
Formula Flash Software Download
FormulaFlash Vehicle List Download
FormulaFlash Driver Download
Checksum List Download
Formulaflash Car List
Ask question to Online AI FormulaFlash Helper
Formula Flash New Update:
SID211+SID212/SID212EVO Release in V1.1.9.0
V1.1.8.0 July 15, 2026The following ECUs have been added in Version 1.1.8.0:
Vehicle ECU / Model Chip Programming Mode Nissan Continental SID310 TC1791 Boot Renault Continental SID310 TC1791 Boot Ford Continental EMS2101 29F800BB + 93C86 Bench Ford Continental EMS2102 29F400BB + 93C86 Bench Ford Continental EMS2103 29F800BB + 93C86 Bench Fiat Magneti Marelli IAW 7GF KWP MPC5534 + 95640 Bench Fiat Magneti Marelli IAW 7GF CAN MPC5534 + 95640 Bench Fiat Magneti Marelli IAW 10GF CAN MPC5642 + 95640 Bench VAG Magneti Marelli IAW 9GV CAN MPC5634 + 95320 Bench Mitsubishi Magneti Marelli IAW 9GM CAN MPC5634 + 95640 Bench
Toyota GEN2 GEN2 GEN3 IMMO OFF module Now Available
V1.1.7.0 Jun 26, 2026
Added E88, E90, E93 read/write/checksum support.
V1.1.6.0 Apr 24, 2026
Added 13 new ECU protocols covering Fiat, Land Rover, and PSA platforms.
V1.1.5.0 Mar 26, 2026
Added 25 new protocols for Marelli, Delphi, and Continental ECUs.
V1.1.4.0 Mar 10, 2026
Added Toyota GEN2 BENCH mode read/write/checksum. Added ME7.8.8 OBD read/write/checksum. Added K-line and CAN unlock for ME7.8 and ME7.8.8.
V1.1.3.0 Feb 12, 2026
Added 100+ new protocols covering 25 vehicle models including AGCO, CASE, FENDT, IVECO, MAN, New Holland, VALTRA, Mercedes, and more.
V1.1.0.0 Jan 9, 2026
Formula Flash V1.0.4.0 UPDATED JUNE 19,2025
Formula Flash V1.0.4.0 UPDATED JUNE 13,2025
Formulaflash ECU data cloud processing platform is officially launched and Beta version is available
(DTC/GPF/OPF/EGR/EVAP/AdBlue are free
and available to all users in the beta version. By
ticket system, engineers will manually process
UPDATA
the data for you for free)
MEL PROTOCOL S
-DELPHI DCM7.1AP SERIES EEPROM DATA READ AND
WRITE
PORSCHE SDI6, SDI7, SDI8 BENCH READ AND WRITE
+ CKS+ IDLE SPEED ADJUSTMENT
-BAIC 1.5L R15C1(AECS FC-34)
-CHANGAN 1.2LLJ469Q(AECS FC-34)
-CHANGAN 15LDAM15KL(AECS FC-34
- DONGFENG 1.5L L4A15Q6(AECS FC-34)
DONGFENG/FENGXING 1.5T 4J15T(AECS FC-34)
-DONGFENG/FENGXING 1.6L4A92FR(AECS FC-34)
-JAC 1.6L DAM16KL/HFC4GB3(AECS FC-34)
1.8L, 2.0L,2.0T
LJ4A18Q6/LJ481Q/HFC4NA3(AECS FC-34/FC-51)
-JINBEI/SWM/BRILLIANCE 1.5L SWC1 5M(AECS FC-34)
-JINLU/INLONG 2.0L LJ481(AECS FC-34)
-KING LONG/JINLONG 1.8L LJ4A18(AECS FC-34)
-LDV/SAIC 1.5LLJ4A15(AECS FC-34)
-SGMW 1.8L,2.0LLJ479Q6/LJM20B(AECS
FC- 34/FC- 50)SHANDONG KAMA 1.6L DAM1 6KR(AECS
C-34)XIAMEN GOLDEN DRAGON 1.8LLJ4A1 8(AECS
FC-34)
-GEELY 01609492 1(EASY U2)
-SGMW 1.2L N12 (EASY U2.5)
-SGMW 1.5L B15 (EASY U2W)
-SGMW 1.5L N15A (EASY U3.6)
-SGMW 1.5L N15T (EASY U3D/U3E)
Formula FLash currently offers BMW special software for free for half a year. After half a year, you will need to pay for the activation of the BMW special software package.
Package includes:1pc x Formula flash box1pc x OBD cable1pc x Connection cable: power cable European standard1pc x Connection cable: power cable US standard1pc x USB cable1pc x Power cable6pcs x set of pin adapters1pc x Cable for NEC 76F00xx1pc x Color coded wiring harnessFAQs
1. What are the features of Formulaflash?Formulaflash is an independently developed ECU reading and writing product. Comprehensive capabilities, rich software models, and high cost performance.
2. Is there a difference between master and slave in Formuflash?Formulaflash does not distinguish between master and salve. It reads all the files of the original ECU, which is equivalent to the master version.
3. What functions does Formulaflash currently have and what models does it support?The models supported by Formulaflash cover: Bike/Car/Boat/Tractor/Truck/Industrial/Van/Bu. Please check the function list for specific models and annual fees.
4. Is FormulaFlash software stable and reliable?The software we currently release ensures stable customers, and they are released after extensive testing and verification.
5. Is FormulaFlash a clone of magicmoto Flexr?Formulaflash is not a Flex clone. They have their own R&D team that will continuously upgrade the software.
6. Will FormulaFlash be upgraded?Of course it will be upgraded. Formulaflash's hardware and software are independently developed, and the products will continue to be upgraded.
7. How much does a Formulaflash subscription cost? What services are included?New users are free of charge for one year of subscription, and the subscription fee after one year is $350. The update function will stop after the subscription fee expires. Updated software can continue to be used.
8. Is Formulaflash stable in quality? Is there any warranty?Formulaflash products have been fully tested to ensure stable quality. It also supports a 1-year warranty.
9. How to activate Formulaflash?When you use it for the first time, the software will prompt "Do you want to activate it?" After selecting "Yes", the product is ready for use.
10. Can Formulaflash be used offline without internet connection?It cannot be used offline, because the data and verification of a large number of functions of the device require real-time communication with the server.
11. How to install Formuflash?a. Open the downloaded driver package and follow the prompts to complete the driver installation.b. Open the downloaded software package and run the formulaflash.exe program in the software package.
12. Does FormulaFlash support OBD function?It has OBD interface and OBD cable. There is no OBD software in its first version, but they will be updated in subsequent upgrades.
